Changlin Technology assisted the "1000T Shallow Water Bottom Salvage Engineering Vessel" to successfully roll-on-float into the water


 昌林科技助力“1000T浅水坐底打捞工程船”成功滚装—漂浮下水 昌林科技助力“1000T浅水坐底打捞工程船”成功滚装—漂浮下水 昌林科技助力“1000T浅水坐底打捞工程船”成功滚装—漂浮下水 昌林科技助力“1000T浅水坐底打捞工程船”成功滚装—漂浮下水 昌林科技助力“1000T浅水坐底打捞工程船”成功滚装—漂浮下水



From July 14 to 17, 2021, the 1000T shallow water salvage engineering ship "Defu 1200" built by Yantai Salvage Bureau adopted the ship airbag upper and lower water technology, rolled the ship into a semi-submersible ship, and successfully floated in the waters of Zhifu Island, Yantai into the water.

The "Defu 1200" shallow water salvage engineering ship launched this time has a total length of 106 meters, a molded width of 42 meters, a molded depth of 7.5 meters, a maximum sinking depth of 12 meters, a maximum lifting capacity of 1,200 tons, and a launching weight of more than 9,700 tons. . Shandong Changlin Marine Airbag and Ball Leaning Technology Research Center independently undertook the design and construction of this type of ship using airbags to move the ship to a semi-submersible ship. In order to ensure the safety of launching the ship, the designers of Changlin Technology Research Center considered that the wide width of this type of ship, the keel pier with a width of nearly five meters in the middle of the deck of the semi-submersible ship and the channels of the pontoons on both sides of the semi-submersible ship were "narrow". ", the small deck operation area and other factors brought difficulties to the launch of the airbag, strictly starting from the process, formulated a detailed process technology plan, and cooperated closely with the technical staff of the shipbuilding center of Yantai Salvage Bureau to fully carry out the airbag ro-ro launch plan. demonstration and passed expert review. Careful planning and relatively adequate preparations have been made for the launching project.

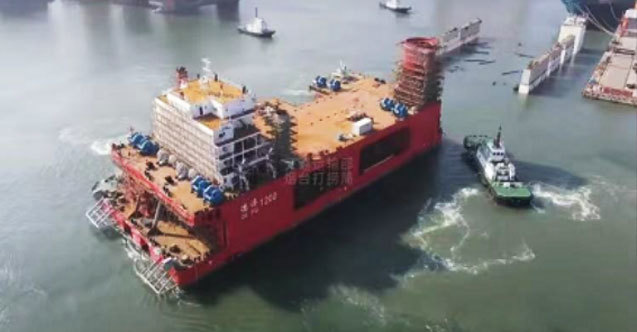

At 6:18 a.m. on July 14th, following the order to launch, the ship "rides" 64 high-capacity airbags produced by Jinan Changlin Airbag Container Factory, and is slowly launched on the berth under the traction of two winches. The operator strictly implements the process plan, adjusts the working pressure and working height of the airbag in a timely manner, and carefully operates the whole process. After three and a half hours of slow "crawling", the giant weighing nearly 10,000 tons was finally safely and smoothly moved by roll-on-roll to the predetermined position on the semi-submersible ship. The displacement is more than 100 meters, the center deviation is less than 100mm, and the accuracy of moving the ship is first-class. After a series of operation preparations such as sitting on the pier, vacuuming the airbag, and fixing, the ship was successfully floated and launched in the waters of Zhifu Island on the 17th.

Ship airbag launching is an innovative technology with my country's independent intellectual property rights. The successful launch of the ship has filled the blank of my country's large-scale shallow water salvage engineering ship using ship airbag launching and launching technology, and roll-on shifting to semi-submersible ships for launching. Compared with the traditional hydraulic boat moving method, it has many advantages such as safety, labor saving, environmental protection, etc., and is more scalable. The implementation of this project has laid a good foundation for further research on airbag launching technology for large special engineering ships.
